Physics Informed Neural Networks

Introduction

Neural networks have an extraordinary ability to learn highly non-linear solutions from data. However, the amount of data needed for a neural net to learn a good, generalizable solution can be vast. Modern LLMs, for example, are pre-trained on over 15 trillion tokens. When such vast datasets are out of reach, there are still options. Architectures can bake in known structural properties of the problem – convolutional nets exploit translational invariance, for instance – but this only helps when the constraint is something that can be encoded in the architecture itself.

Physics-Informed Neural Networks (PINNs) encode known constraints about the system being modeled directly into the training objective as an additional penalty term. This penalty can be thought of as a form of regularization that forces the model to be consistent with properties we know the solution must satisfy — whether derived from first principles or empirical knowledge. In the context of physics problems, those constraints generally come in the form of partial differential equations (PDEs). In these cases, modern ML frameworks like PyTorch and JAX handle the penalty term quite elegantly due to their autodifferentiation engines. No need for finite difference approximations or symbolic math! In this post, I’ll focus on PDEs, following the original paper, but the same ideas apply anywhere you have reliable prior knowledge about the system. If you’re interested in playing with the code yourself, you can find the repository here.

The 1D heat equation makes for a natural first example — it has a clean analytical solution we can use to verify our results, and its form is similar to the non-linear Burgers’ equation used in the original Raissi et al. paper. Beyond just showing a working implementation, I’ll also explore how each term in the loss works together to generate a full solution through ablation studies. By the end, you should have a pretty clear sense of exactly how PINNs work and what classes of problems you might reach for a PINN to solve.

The Heat Equation

The 1D heat equation describes how heat diffuses through a medium over time:

where $u(x, t)$ is the temperature at position $x$ and time $t$, and $\alpha > 0$ is the thermal diffusivity of the medium.

The analytical solution can be found by assuming the solution separates into a product of a function of $x$ alone and a function of $t$ alone — an approach known as separation of variables. This yields a whole class of solutions, some of which we typically reject because their behavior is non-physical (negative temperatures, temperatures that go to infinity as time progresses, etc.). We will focus primarily on the set of solutions having the form

with $C > 0$, $\beta = \sqrt{C/\alpha}$ and $A_0$, $B_0$, $B_1$, and $C$ are free parameters that are determined by the choice boundary and initial conditions of the physical system.

A full solution to the heat equation can be a sum of any number of functions having the form of equation \ref{eq:general}, each having the free parameters set to different values, but we will choose a setup where the exact solution is a single term. In particular, we consider the problem on the domain $x \in [0, 1]$, $t \in [0, T]$, with the following boundary and initial conditions:

The boundary conditions fix the temperature at both ends of the rod to zero for all time, and the initial condition describes a sinusoidal temperature distribution along the rod at $t = 0$. Enforcing our boundary and initial conditions fixes the free parameters uniquely, giving the exact solution:

The spatial profile remains sinusoidal for all time, decaying exponentially as heat dissipates.

The PINN Approach

Network Architecture

The network itself is a straightforward fully connected MLP that takes the spatial coordinate $x$ and time $t$ as inputs and outputs the predicted temperature $\hat{u}(x, t)$:

The default architecture uses 4 hidden layers with 32 neurons each and Tanh activations throughout. Tanh is a natural choice here — unlike ReLU, it is infinitely differentiable, which matters because we will need to compute second-order derivatives of the network output during training.

class PINN(nn.Module):
    def __init__(self, n_neurons, n_layers):
        super().__init__()
        layers = [nn.Linear(2, n_neurons), nn.Tanh()]
        for _ in range(n_layers - 1):
            layers += [nn.Linear(n_neurons, n_neurons), nn.Tanh()]
        layers += [nn.Linear(n_neurons, 1)]
        self.mlp = nn.Sequential(*layers)

    def forward(self, t, x):
        input = torch.cat([t, x], dim=1)
        return self.mlp(input)

There is nothing unusual or particularly interesting about this model architecture. The novelty of the approach is in the loss function, which encodes the known structure (in this case the heat equation), and the sampling of collocation points, points where we don’t know the correct output, but we do know the governing equation (more on this in the next section).

Loss Function

The total loss has two components — a data loss and a physics loss:

The weights $\lambda_u$ and $\lambda_f$ control the relative contribution of each term and are typically each set to 1.0.

The data loss is a standard MSE over the boundary and initial condition points, locations where we do know the value of $u$:

The physics loss penalizes the network for violating the heat equation at a set of collocation points — locations in the domain where we don’t know $u$, but we do know the governing equation must hold:

In other words, $\mathcal{L}_{physics}$ is the mean squared PDE residual — it is zero only when the network output exactly satisfies the heat equation at every collocation point. What makes this particularly elegant in PyTorch is that the derivatives in $\mathcal{L}_{physics}$ are computed via autodifferentiation directly through the network:

def physics_informed_nn(model, t, x, alpha=ALPHA):
    out = model.forward(t, x)
    u_x = torch.autograd.grad(
        out, x, grad_outputs=torch.ones_like(out), create_graph=True
    )[0]
    u_xx = torch.autograd.grad(
        u_x, x, grad_outputs=torch.ones_like(u_x), create_graph=True
    )[0]
    u_t = torch.autograd.grad(
        out, t, grad_outputs=torch.ones_like(out), create_graph=True
    )[0]

    return u_t - alpha * u_xx

torch.autograd.grad is less common than a simple .backward() call and the documentation can be a little opaque, so it’s worth a closer look. A call torch.autograd.grad(output, input, grad_outputs=v) computes the vector-Jacobian product $v^T J$, where $J$ is the Jacobian of output with respect to input. In our case the network output for a batch of size $n$ is a tensor of shape (n, 1), so the Jacobian of $\hat{u}$ with respect to $x$ is a column vector whose $i$-th entry is $\partial \hat{u}(t^i, x^i) / \partial x^i$. By passing grad_outputs=torch.ones_like(out) we set $v = \mathbf{1}$, which simply sums the Jacobian entries — giving us the elementwise gradients across the batch.

The create_graph=True argument tells PyTorch to keep the computational graph alive through the derivative computation so that gradients can be backpropagated through $\mathcal{L}_{physics}$ during training. Without it, PyTorch discards the graph after the computation for efficiency, and the second call to torch.autograd.grad for $u_{xx}$ would fail.

Training Setup

After some experimentation, an Adam optimizer with a StepLR learning rate scheduler that decays an initial learning rate of 1e-4 by a factor 0.1 every 5000 epochs provided a good balance of performance and speed. The total number of epochs in the results shared here is 24000. Running on CPU, they take a minute or two to train.

The boundary and initial condition points are sampled once before training and held fixed throughout. The collocation points, however, are resampled randomly every epoch. This means the physics loss is evaluated at a different set of locations each epoch, which acts as a form of regularization and helps the network learn to satisfy the heat equation across the full domain rather than just at a fixed set of points.

The default sample sizes are:

• $N_u = 200$ data points (100 boundary + 100 initial condition)
• $N_f = 5000$ collocation points

The relatively large number of collocation points compared to data points reflects the nature of the problem — the physics loss needs to cover the full two-dimensional domain $(x, t) \in [0,1] \times [0,1]$, while the data loss only needs to cover the boundary and initial condition. However, the solutions were still quite good with only 2000 collocation points.

Results

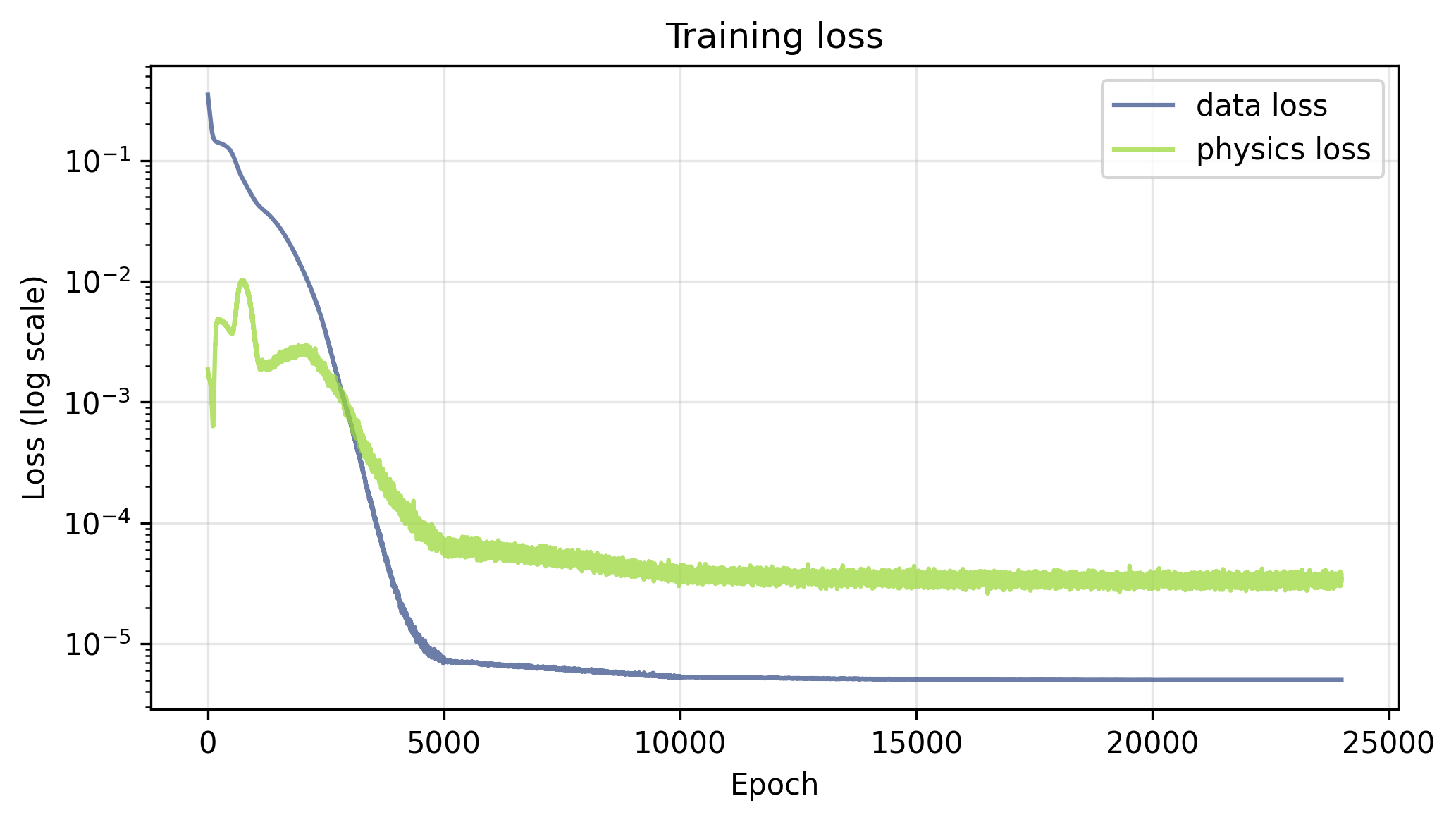

With $\lambda_u = \lambda_f = 1.0$, there is an early transient in the physics loss during training, followed by a steady drop in both the physics and data losses. By the end of training, the data loss is lower than the physics loss, which could be due to the fact that there are only 200 data points to learn vs. 5000 collocation points, or to the re-sampling of collocation points each epoch acting as a form of regularization on the physics loss.

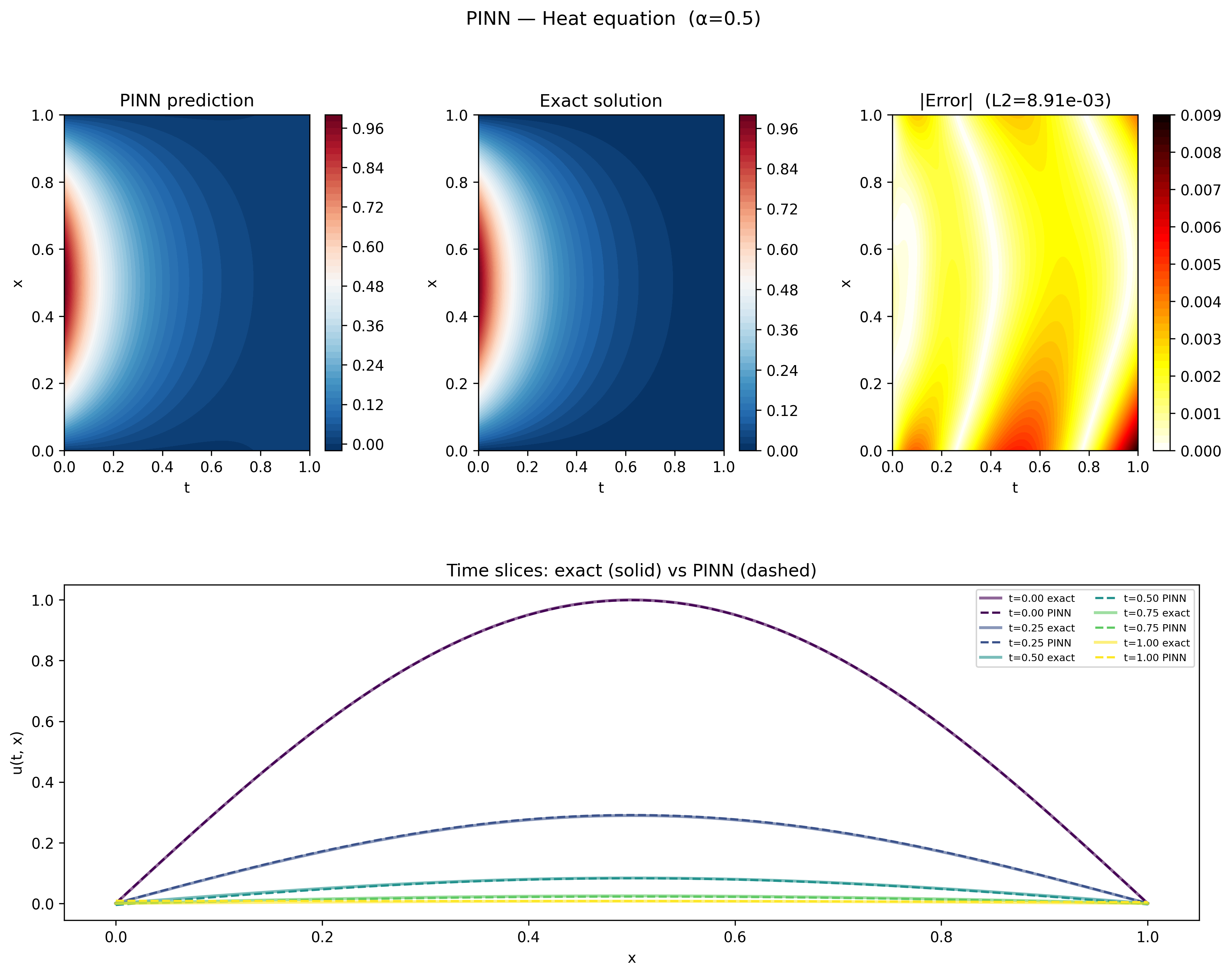

With both loss terms active, the PINN recovers the analytical solution well. The figure below shows the predicted and exact solutions as heatmaps over the full domain, along with the absolute error. The total L2 error is $8.91 \times 10^{-3}$.

The bottom row shows five time snapshots with the predicted and exact solutions overlaid. The network captures both the sinusoidal spatial profile and the exponential decay in time accurately across the full domain, pretty cool!

Ablation Studies

Physics Loss Only

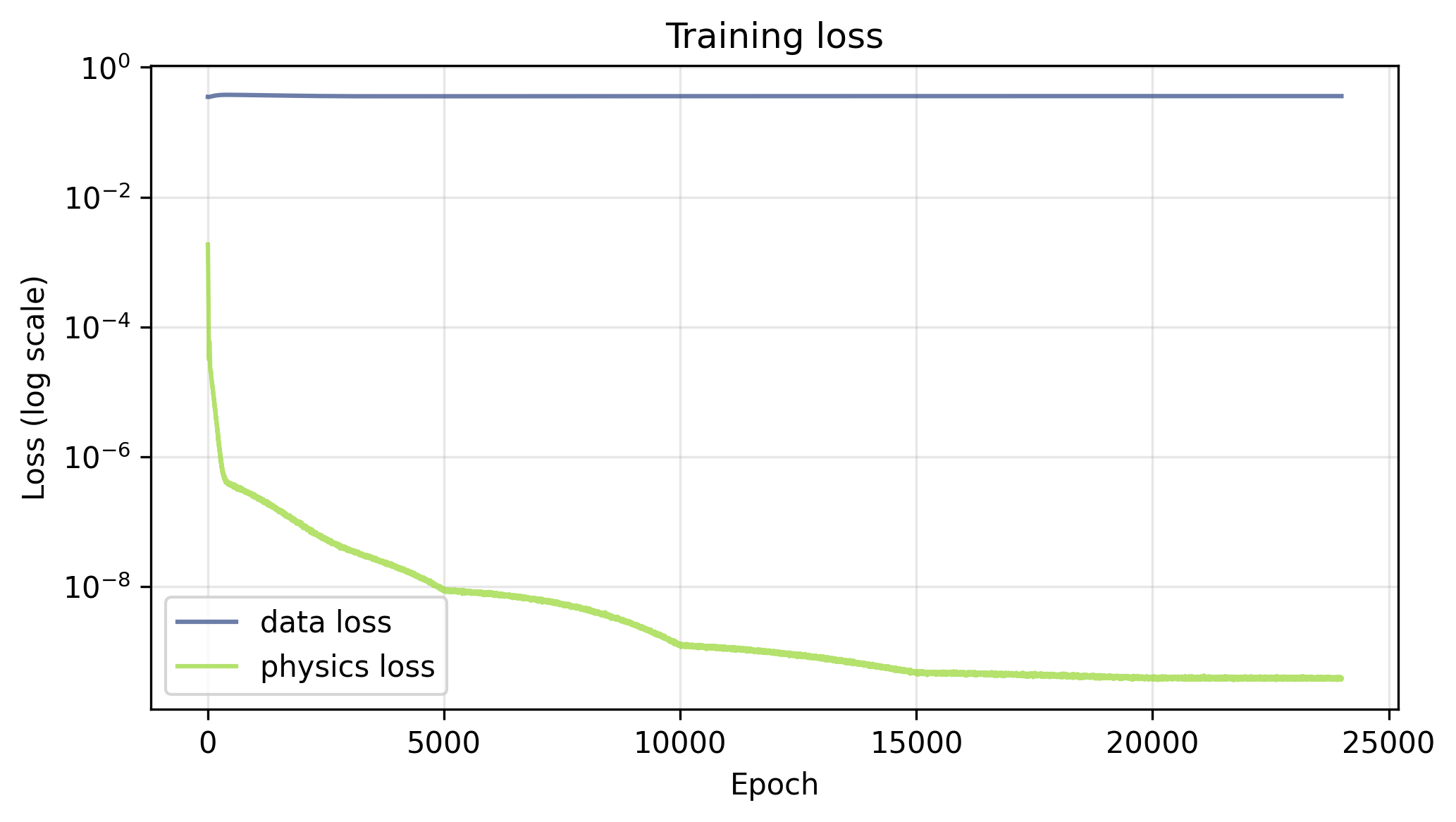

Setting $\lambda_u = 0$ removes the boundary and initial condition constraints from the training objective entirely, leaving the network free to find any solution that satisfies the heat equation. The loss curves tell the story clearly — the physics loss drives down below $10^{-9}$ over the course of training, while the data loss, which is not being optimized, flatlines around $0.5$ throughout. Interestingly, with no competing data term, the physics loss reaches a full 5 orders of magnitude smaller than it did when the data loss was present.

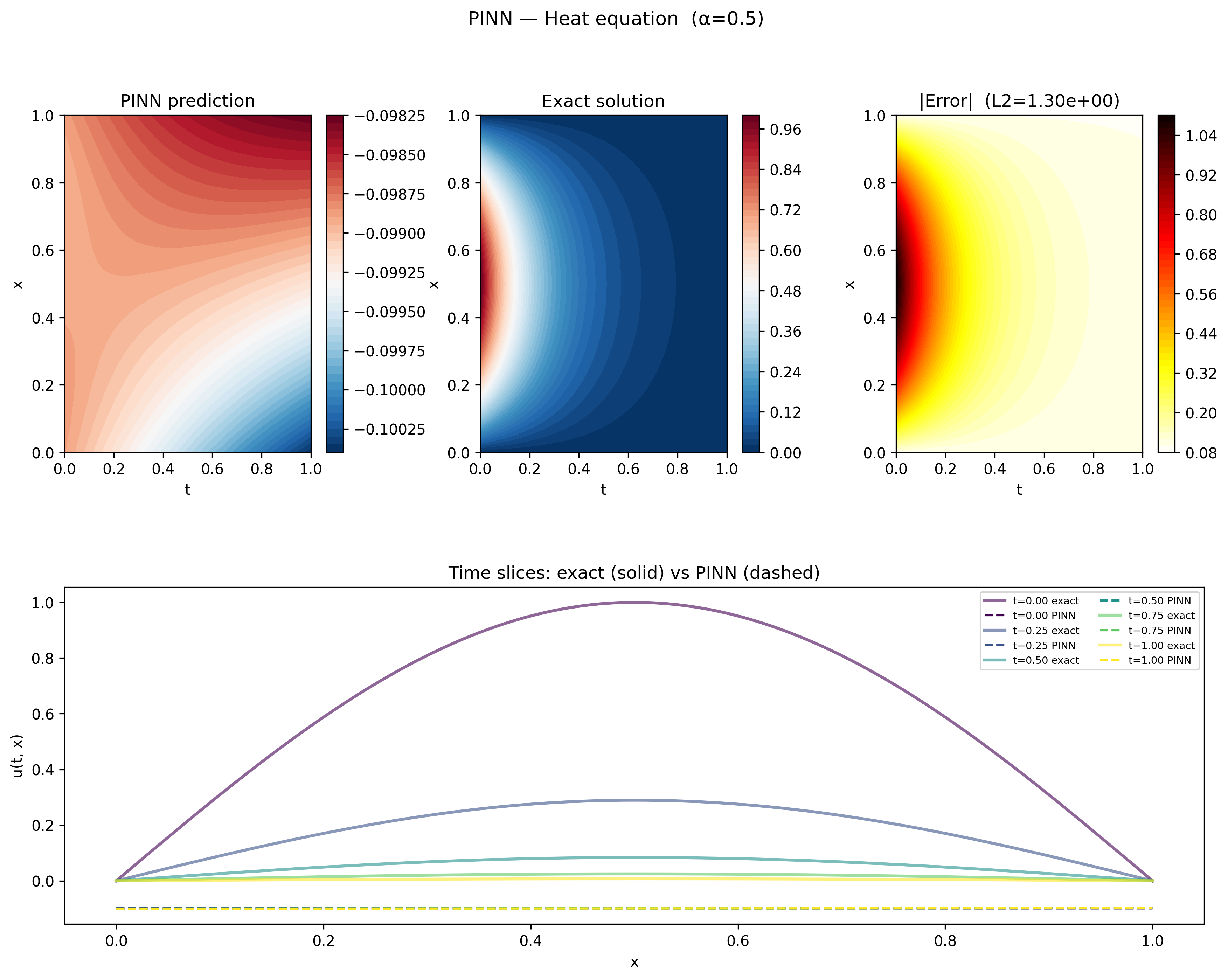

As you might expect from the data loss, the solution learned by the network has no resemblance to the one we’re looking for.

Rather than the decaying sinusoidal profile of the exact solution, the network has learned something slightly negative across the entire domain, with a roughly linear solution in $x$ with a slope that increases with time.

To understand what the network actually learned, recall the general solution to the heat equation can be a sum of many terms belonging to a class of solutions, and only reduces to the simple form analyzed here with a carefully chosen set of boundary and initial conditions.

I spent a considerable amount of time trying to pin down the exact analytical form of this solution, but wasn’t able to get a reliable fit to the data. From the progress I was able to make, it seems that this solution has at least 2 components – the first having the form of equation \ref{eq:general}, but the second having a general form

which is a valid class of solution, but one that is typically discarded due to the unphysical property that $|u(t,x)| \rightarrow \infty$ as $t \rightarrow \infty$.

To be sure the solution produced by the PINN is indeed still a solution to the heat equation (albeit an unphysical solution), we can pick out the initial and boundary conditions from the PINN solution, and use those in a finite difference solver to manually integrate the heat equation and see what we get.

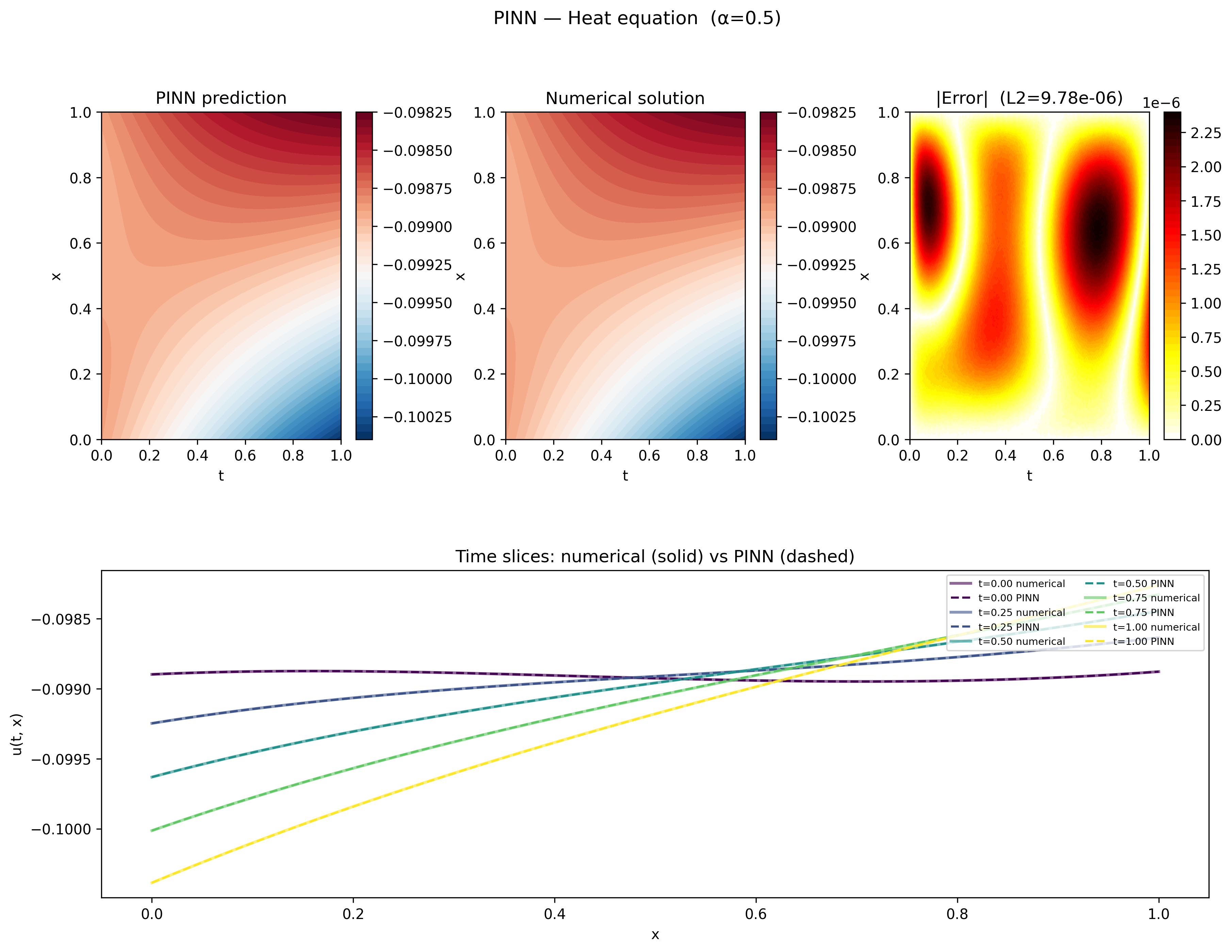

As the plots demonstrate, the agreement between the PINN and the numerical solution is excellent, with an overall L2 of $9.78 \times 10^{-6}$. The time slices also exhibit the behavior that $|u(t,x)|$ is increasing with time, consistent with a component of the solution having the form of equation $\ref{eq:general_hyper}$. The physics loss alone is clearly capable of driving the network to a valid solution to the heat equation, it simply needs the data term to select the particular solution we’re after

Data Loss Only

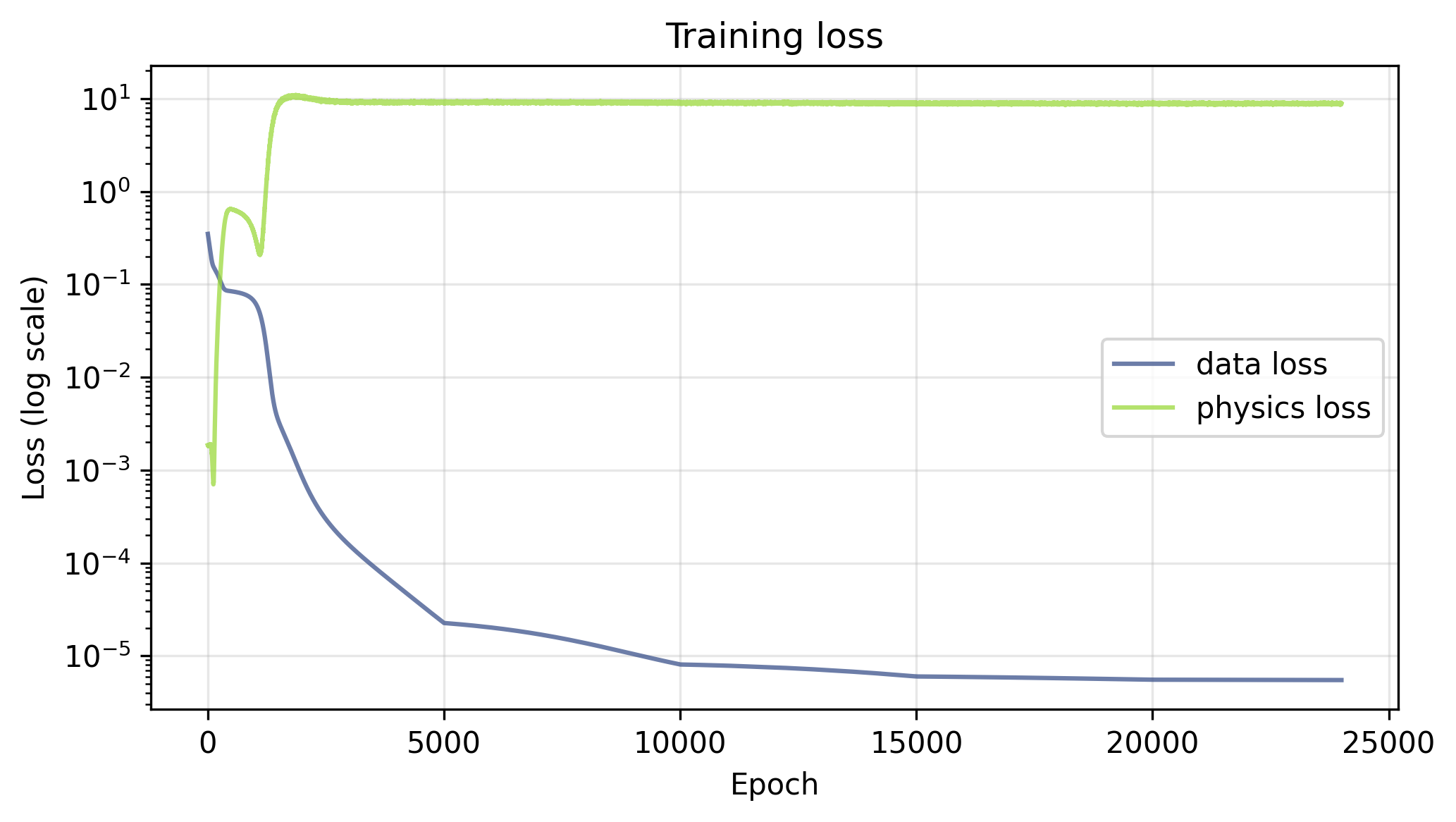

Setting $\lambda_f = 0$ removes the physics constraint entirely, leaving the network to learn solely from the boundary and initial condition data points. Unlike the physics only loss, which dropped substantially lower with the data term gone, here the loss curves show the data loss driving down to around $10^{-5}$ over the course of training, about the same as it was in the full solution. The physics loss, which is not being optimized, shoots up early and flatlines around $10$ — a reminder that satisfying the boundary conditions alone says nothing about whether the heat equation is being satisfied in the interior.

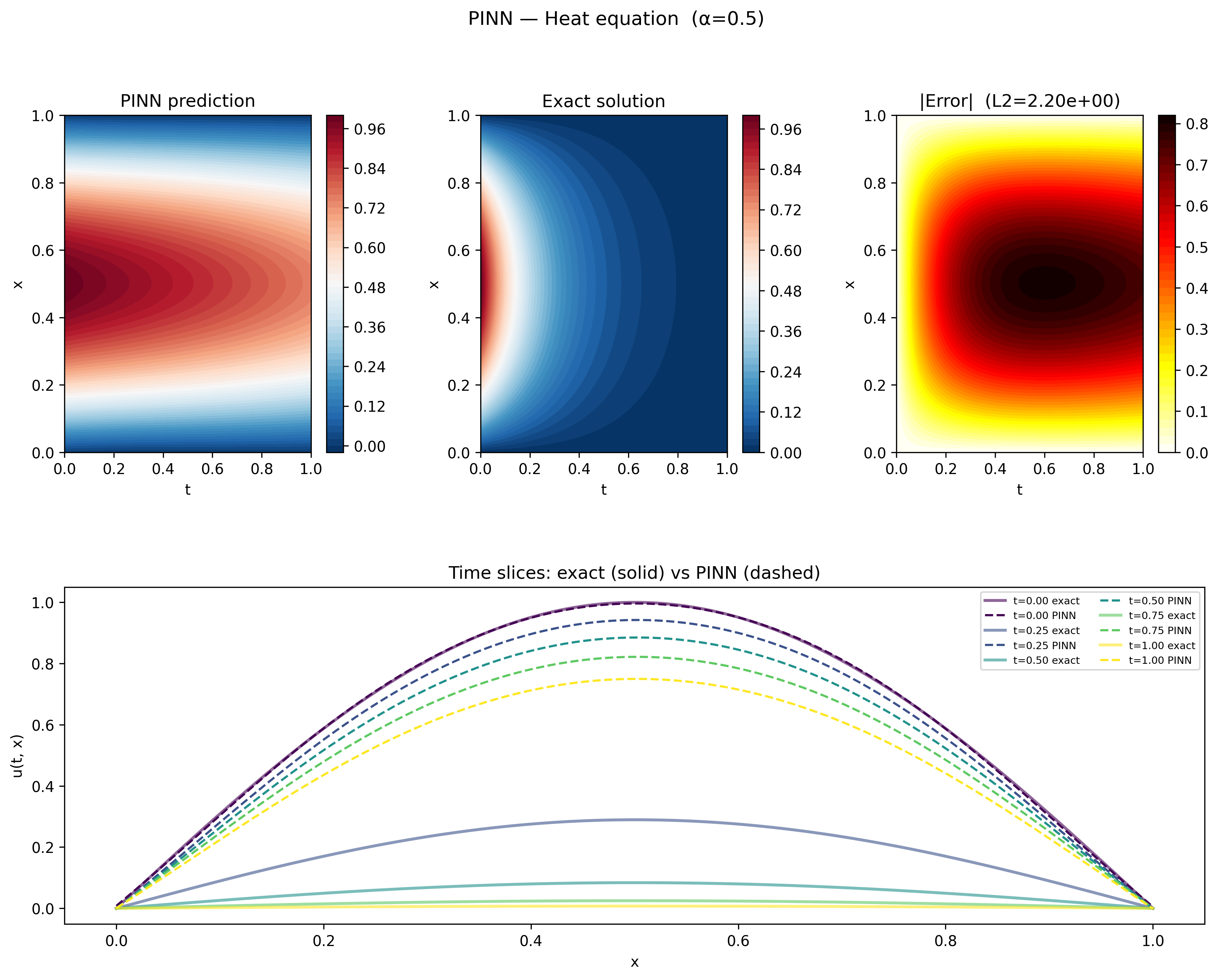

The results plot tells a clear story. At $t = 0$ the network matches the exact solution perfectly — it has direct training data for the initial condition $u(0, x) = \sin(\pi x)$ and learns it well. But without any physics to guide the interior, the network fails to learn that the solution should decay exponentially in time. Instead of the amplitude collapsing toward zero, the PINN prediction barely decays at all, with an L2 error of $2.20$.

To understand what the network learned in the interior, we can fit the exact solution form $u(x, t) = a e^{-ct} \sin(\beta x)$ to the PINN output at five time snapshots:

The decay constant $c$ is remarkably consistent across all time slices and virtually identical to the true value of $\alpha \pi^2 = 0.5 \times \pi^2 \approx 4.93$, confirming that the spatial structure of the solution is correct. The amplitude $a$, however, grows roughly by a factor of three between each snapshot — the opposite of the exponential decay we expect. The network has learned the right shape but the wrong dynamics, compensating for the missing decay by inflating the amplitude instead. This makes sense – the data provided to the model includes points on $u(0, x)$, so the model learns the initial spatial solution, which we know is $\sin (\sqrt{c / \alpha} x)$. Hence, the adjustable parameter $c$ gets fixed when the model learns to obey the initial condition. The only remaining degree of freedom is the decay, and the model has no information to learn how the solution should decay. Without the physics loss to enforce the heat equation in the interior, there is nothing to prevent this.

Summary

PINNs offer an elegant solution to a common problem in scientific machine learning — what do you do when data is sparse but you know something about the physics governing the system? By encoding the governing equations directly into the loss function as a PDE residual, the network is constrained to learn solutions that are physically consistent, even in regions where no data exists.

The ablation studies make the contribution of each loss term concrete. Without the data loss, the network finds a valid solution to the heat equation but one that ignores the boundary and initial conditions entirely — a mathematically correct but physically meaningless result. Without the physics loss, the network fits the boundary and initial conditions well but has no reason to obey the heat equation in the interior, learning the right spatial structure but the wrong dynamics.

One of the appealing things about PINNs is how little changes when you swap out the underlying PDE. Extending this to Burgers’ equation, or to any other PDE, requires only updating the physics residual — the network architecture, training loop, and everything else stays the same. This generality is part of what makes PINNs a useful tool beyond just physics problems; any system where you have reliable prior knowledge about the structure of the solution is a candidate. The low L2 achieved here with only 200 training points and a simple network demonstrates how powerful the method can be when data is hard to come by.

An interesting direction not explored here is the inverse problem — rather than using a known PDE to constrain the solution, you instead learn the parameters of the PDE itself from data. Raissi et al. explore this in the second part of their original work, perhaps next time!
